Single App with up to 8 NDI® channels recording licence
just:in mac lite NDI lets you record up to 8 NDI channels of HD or UHD video on a qualified Mac, with growing file support, in one flexible, single-application solution to cover the indispensable recording functions of broadcast and production environments that might not require the full feature set of our flagship capture solutions or are in demand for a budget-friendly recording solution. The NDI High Bandwidth recording performance depends on the Apple silicon hardware and the network components/infrastructure used as well as the available hard disk space.
Streamlined and Comprehensive Setup
The setup of just:in mac lite NDI is streamlined, with a comprehensive guide seamlessly leading users through each configuration step. It’s worth noting that just:in mac lite NDI is tailored to support NDI® inputs only, with full support for production codecs such as Apple ProRes, H.264, H.265, and even XDCAM HD 422 MXF out of the box.
NDI® Formats Support
Full discovery and recording support for NDI High Bandwidth/ HX3 sources based on the open, low-latency video-over-IP protocol, a registered trademark of Vizrt NDI AB. just:in mac lite NDI employs the latest macOS NDI SDK to establish connections with available NDI streams within a designated network. Given the inherent characteristics of NDI technology, as well as the variability in networking configurations and infrastructure, it is important to note that the performance and integrity of all recordings might vary.
Please refer to the official NDI documentation for detailed information: https://docs.ndi.video/docs/docs/index.
Essential Growing File support

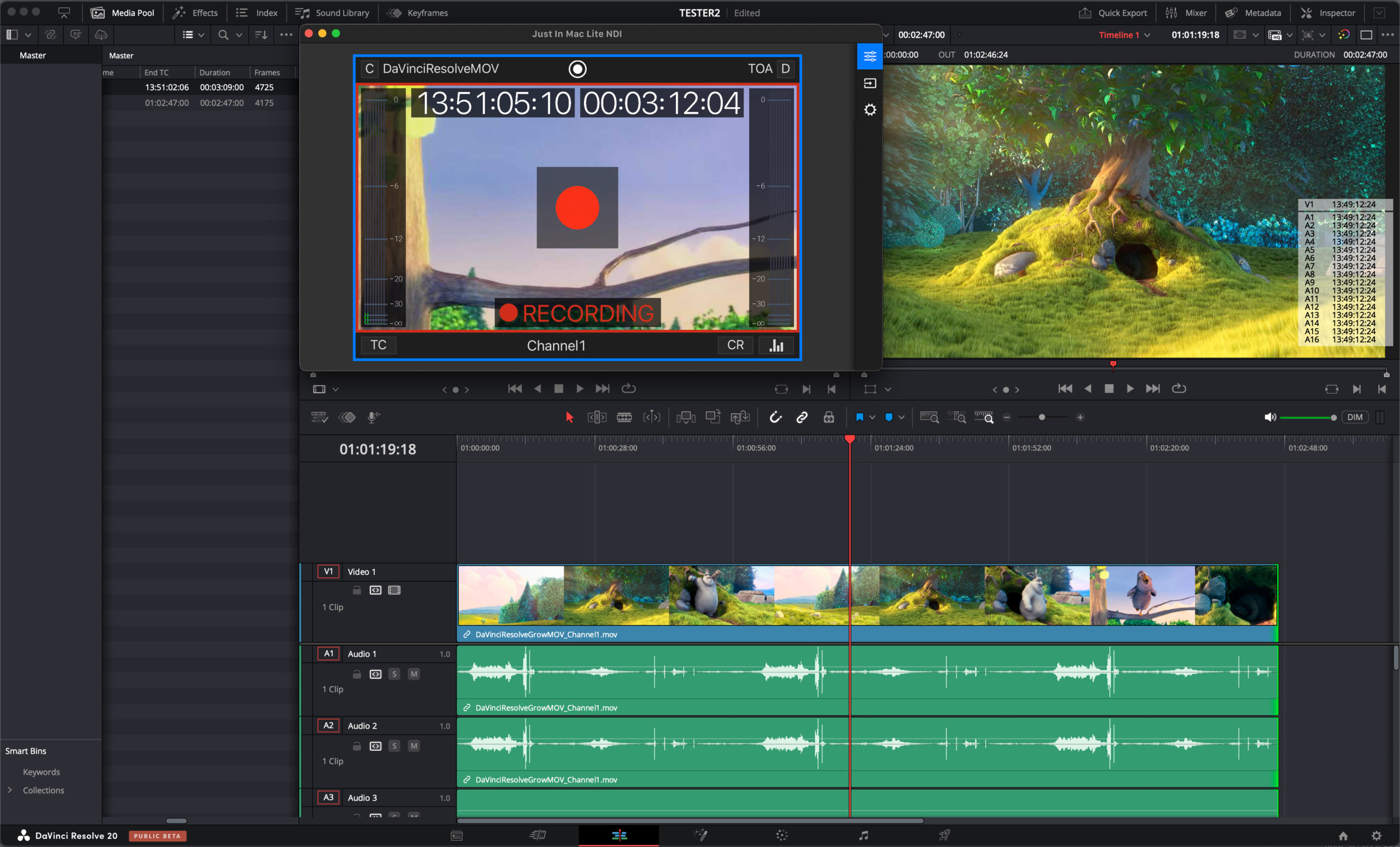

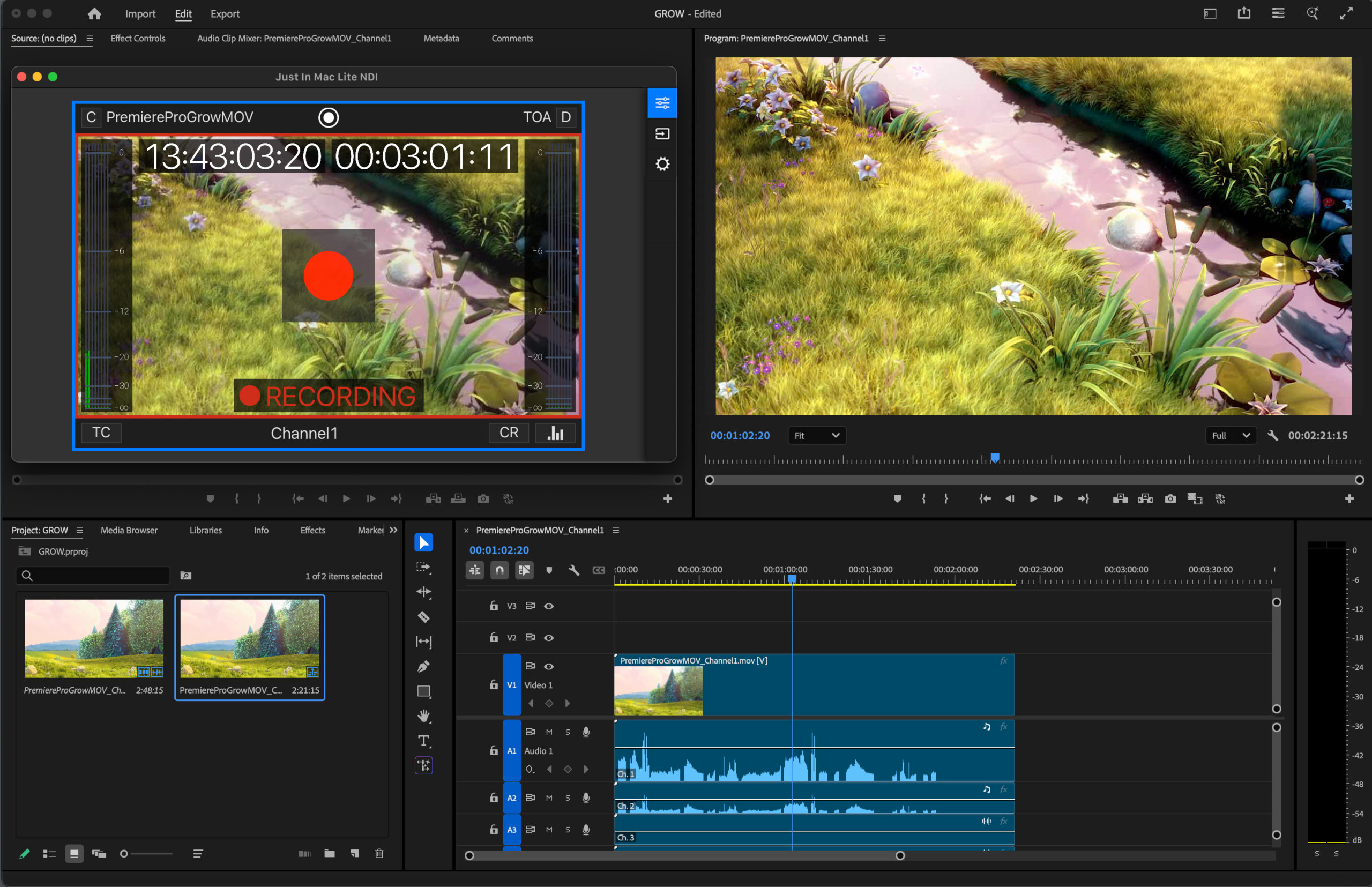

In production scenarios where almost immediate access to the recordings is essential, the support for so-called Growing Files is indispensable. This allows the editors to access and edit files while the recording is in progress, and at the same time reduce additional post-production time. Growing Files recorded with just:in mac lite NDI are compatible with Apple’s Final Cut Pro (MOV and MXF container), Adobe’s Premiere Pro (MXF container only). Please consult the NLE vendor’s notes about codec/container compatibility.
Flexible Apple hardware acceleration encoding support
The just:in mac lite NDI solution features the unique option to choose either CPU or hardware-accelerated encoding when using the recent Apple Silicon models. This is to overcome possible encoding limitations when using a combination of Apple ProRes or H.264/HEVC Capture Presets in the available recording channels. Please note that Apple hardware acceleration for ProRes encoding is restricted to progressive formats. Interlaced or alpha channel formats will be handled by the CPU.
Extensive Support for Timecode Input Sources
just:in mac lite NDI supports various timecode sources to accommodate your needs: choose between Computer Time or LTC over Audio modes.
REST API Support
With the introduction of REST API calls, a new integration path has opened up, allowing you to seamlessly incorporate just:in mac lite NDI into your tailored workflows. This new advancement empowers you to initiate recordings remotely, directly from external systems. For example, by simply installing the Bitfocus Companion app for macOS and adding the ToolsOnAir Just In Capture module, you can effortlessly trigger recordings and receive real-time feedback on recording status, making it an intuitive and powerful tool for your recording and production needs.
New Licensing Process
The licensing process has been redesigned and users can now seamlessly activate, deactivate, and transfer their licences between different machines, making the experience smoother than ever before.
Feature Comparison
Features | just:in mac lite NDI 6.5 | just:in mac 6.5 |
Single Application | √ | X |
Client Server architecture | X | √ |
Supported Frame Rates | 23.976, 24, 25, 29.97, 30, 50, 59.94, 60. | 23.976, 24, 25, 29.97, 30, 50, 59.94, 60. |
Supported Input Sources | NDI® ONLY INPUT SUPPORT (High Bandwidth/HX3) | SDI, HDMI, NDI® High Bandwidth/HX3, SRT, UDP, ST-2110 |
NDI VANC Data Support (Closed Captions, OP47, SCTE-104) | √ | √ |
Video Device Support | NDI® ONLY INPUT SUPPORT | AJA, Blackmagic Design |
Supported Codecs | ProRes 422/4444, H.264, HEVC (H.265), XDCAM HD 422, Uncompressed 8/10-bit | ProRes 422/4444, H.264, HEVC (H.265), XDCAM HD 422, IMX, AVC-I, DNxHD/HR, DVCPRO HD, Uncompressed 8/10-bit |
Audio Codecs | AAC, Linear PCM | AAC, Linear PCM |
Audio Channels | Up to 16 Channels | Up to 16 Channels |
Video Resolution | SD, HD, UHD | SD, HD, UHD, UHD2 |
MXF OP1a Container Support | √ | √ |
Closed Captioning Support | √ | √ |
HLS Output Support | X | √ |
Multiple Destinations | √ | √ |
Multiple Capture IDs | X (only 1 Capture Preset per Channel) | √ |
Dynamic Folder Generation | √ | √ |
Growing File Support | √ (Refer to NLE Vendor codec/container compatibility) | √ (Refer to NLE Vendor codec/container compatibility) |
HDR Support (SDI) | X | HLG, PQ, S-LOG3/SR-Live transfer characteristics |
Color Space Support | Rec. 601, Rec. 709 | Rec. 601, Rec. 709, Rec. 2020 |
Custom Naming Conventions | √ | √ |
Metadata Handling | X | √ |
Events | X | √ |
Capture Modes | Crash (Gang/Split), Schedule | Crash (Gang/Split) Batch (VTR), Schedule, Multicamera Processing (with included live:cut option) |
Split Recordings | Yes, Frame Accurate | Yes, Frame Accurate |
Marker Presets (Adobe) | X | √ |
Overlays (Text, Timecode, Logos) | X | √ |
REST API | √ (Postman, Swagger compatible) | √ (Postman, Swagger compatible) |
iconik.io Integration | X | √ |
Bitfocus Companion Integration | √ | √ |
Logs & Profiles | √ | √ |
Licensing Models | Trial, Permanent | Trial, Permanent, Temporary |
Licensing Type | Perpetual License (includes basic support, updates/upgrades subject to charge) | Perpetual License includes 1st year of Support and free version upgrades, Rental License (Monthly based) |
Number of Channel Licence | 8 Channels package (number of recording channels depends on Apple silicon hardware used) | Single to Multiple Channels packages (depends on Mac HW and video devices) |
Availability for Purchase via | TOA Online Store | TOA Direct/Partner |
Compatibility Matrix
Version | macOS Sequoia (15.x) | macOS Sonoma (14.7.x) | macOS Ventura (13.7.x) | macOS Monterey (12.7.6) | macOS Big Sur (11.7.10) | |||||
6.5 | Apple silicon | Apple silicon | Apple silicon | Apple silicon | Not available | |||||
NDI® Format | NDI® Format | NDI® Format | NDI® Format | |||||||
High Bandwidth | HX3 | High Bandwidth | HX3 | High Bandwidth | HX3 | High Bandwidth | HX3 |
NOTE: All updates and upgrades mentioned are available to customers with an active support and software maintenance contract. To renew your maintenance contract, please contact moc.rianosloot@selas
System Requirements
- Apple Mac mini (Apple silicon), iMac (Apple silicon), MacStudio M1/M2 (Max or Ultra), Mac Book Pro (M1/M2/M3 Pro/Max models), Mac Book Air (M1/M2/M3 models), Mac Pro 2023 (M2 Ultra model).
- Apple macOS Ventura, macOS Sonoma, macOS Sequoia are recommended.
- Support for NDI High Bandwidth and NDI HX3 formats
- For detailed system requirements, please consult the online user manual or contact us
Supported Codecs & Containers
Quicktime
NTSC | PAL | HD | UHD
- ProRes 422, LT, Proxy, HQ
- ProRes 4444 (with alpha)
- H.264
- HEVC (H.265)
- Uncompressed 4:2:2
MXF
NTSC | PAL | HD
- XDCAM HD 422
MP4
NTSC | PAL | HD | UHD
- H.264
Supported Frame Rates
- 23.976, 24, 25, 29.97, 30, 50, 59.94, 60.
- Supported frame rates are container and codec specific.
Free Download / Info
Further Documentation:
- just:in mac lite NDI v.6.x – READ ME FIRST
- just:in mac lite NDI v.6.x – Release Notes
- just:in mac lite NDI v.6.x – System Requirements
- just:in mac lite NDI v.6.x – Supported Mac Models
- just:in mac lite NDI v.6.x – Supported Container & Codec Options
- just:in mac lite NDI v.6.x – Feature Differences just:in mac v.6.x solutions
- just:in mac lite NDI v.6.x – Getting Started
- just:in mac lite NDI v.6.x – User Manual
