Before proceeding, you must stop the Channel by deactivating the checkbox. Stopping the channel will also stop the Just Live Lite engine output.

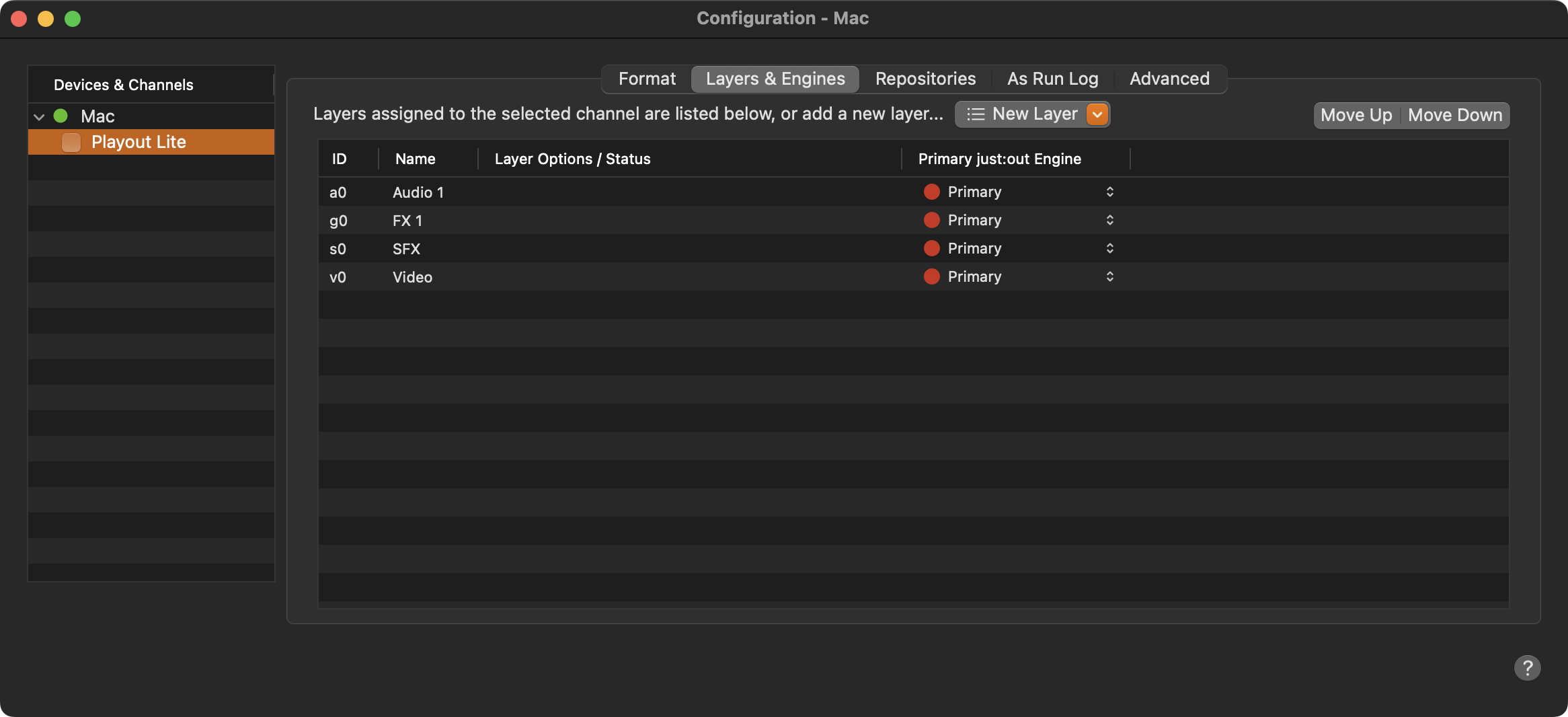

New Layer: Allows to add an available but not activated layer to the channel.
Move Up/Down: Move the selected Layer up or down. The final visual output will be in the order defined here (top to bottom).
ID: Unique ID, used to identify the Layer within the XML Playlists.
Name: Name of a Layer. Double-click to change it. The Layer names will be displayed in the Just Live Lite NDI user interface. Use less than four characters for the Just Live Lite NDI user interface, otherwise the name will be shortened.
Layer Options / Status: Once an Infinite Graphic has been defined in the Inspector of the Just Live Lite NDI user interface, the chosen graphics element is shown here.
Primary Just Live Lite NDI Engine: Shows the name of the Playout Engine.
