[JIL] Work with Live Cut Projects v.5.5

All of the following chapters require that you are running a properly configured Just In linux setup. If this is not the case, please refer to the related Just In solution documentation.

All of the following chapters require that you are running a properly configured Just In linux setup. If this is not the case, please refer to the related Just In solution documentation.

Live Cut Projects

Create a Live Cut Project

Open Just Control and select the desired Channels for your Live Cut Project and open the Inspector. You need to select at least two Channels. Select a Timecode Source and a Capture- and Destination-Preset. It is mandatory that these attributes are synchronized for all Channels used with Live Cut.

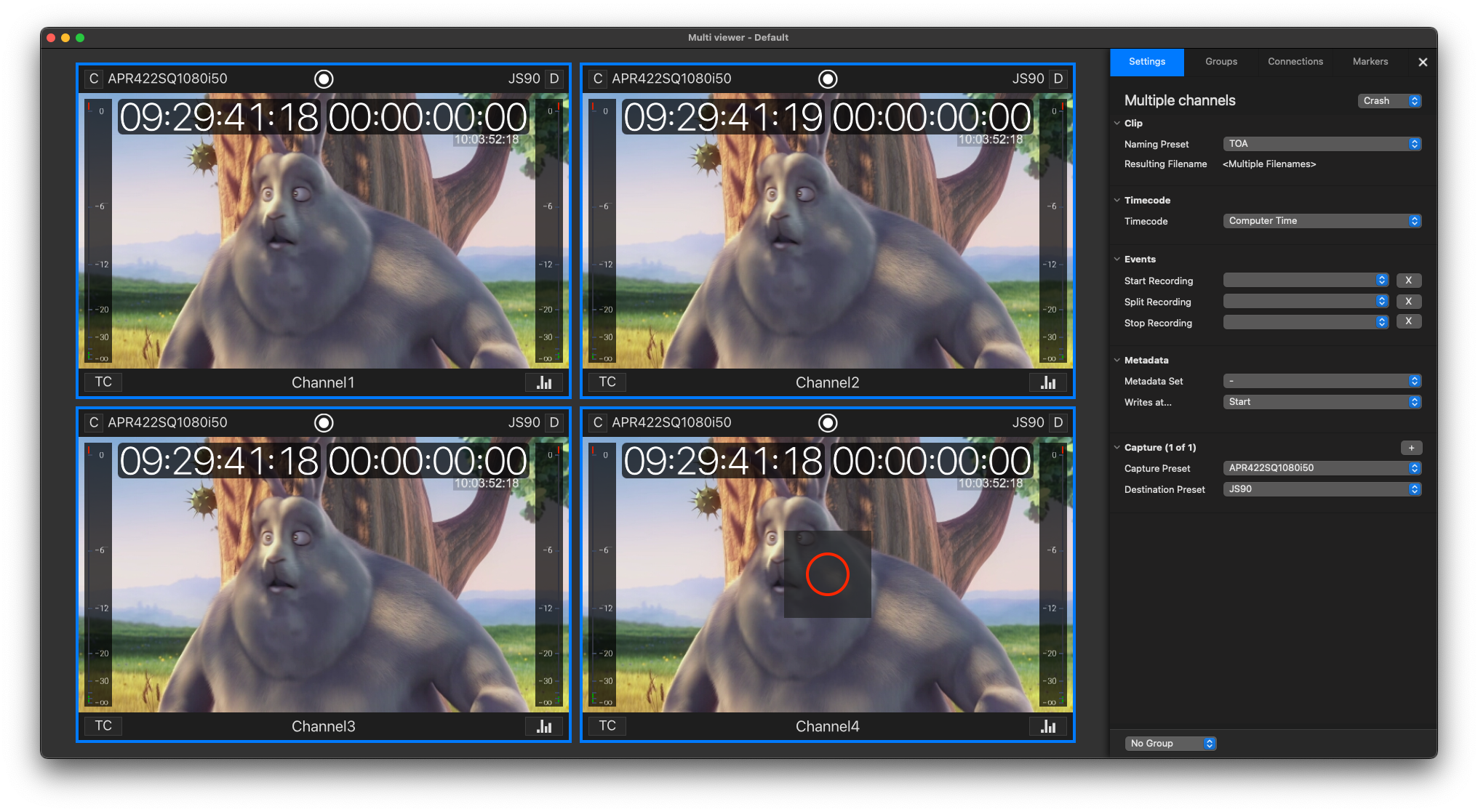

[JIL] Work with Live Cut Projects v.5.5 screenshot 1

Go to the menu “Channel → New Live Cut Project”. Enter a “Name”, “Scene” and “Take” value for the Live Cut Project. A Project Template is not required at this time. Press the “Create” button when you are done.

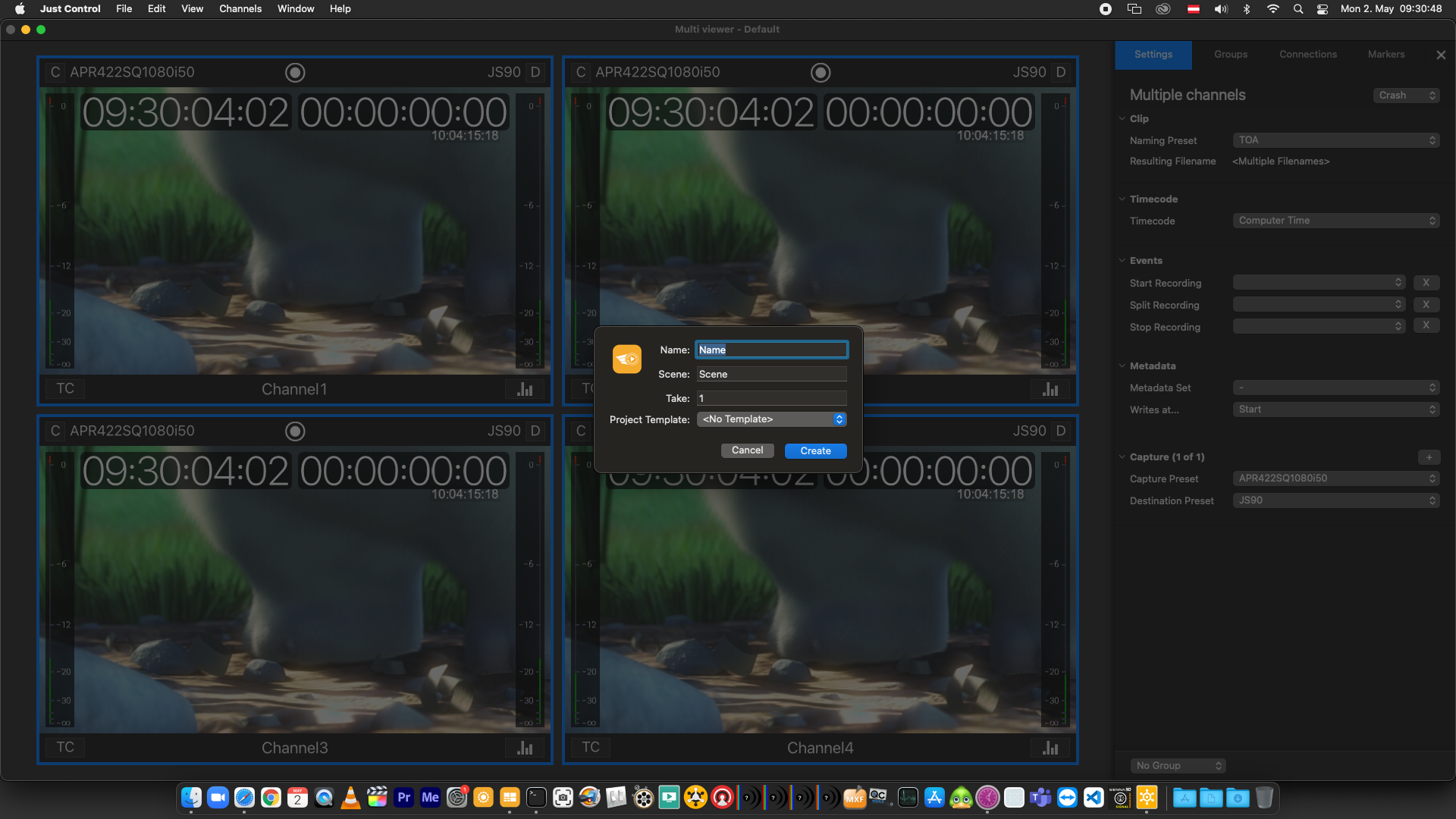

[JIL] Work with Live Cut Projects v.5.5 screenshot 2

If everything went okay the Live Cut Interface will be shown and you can start working with your Live Cut Project.

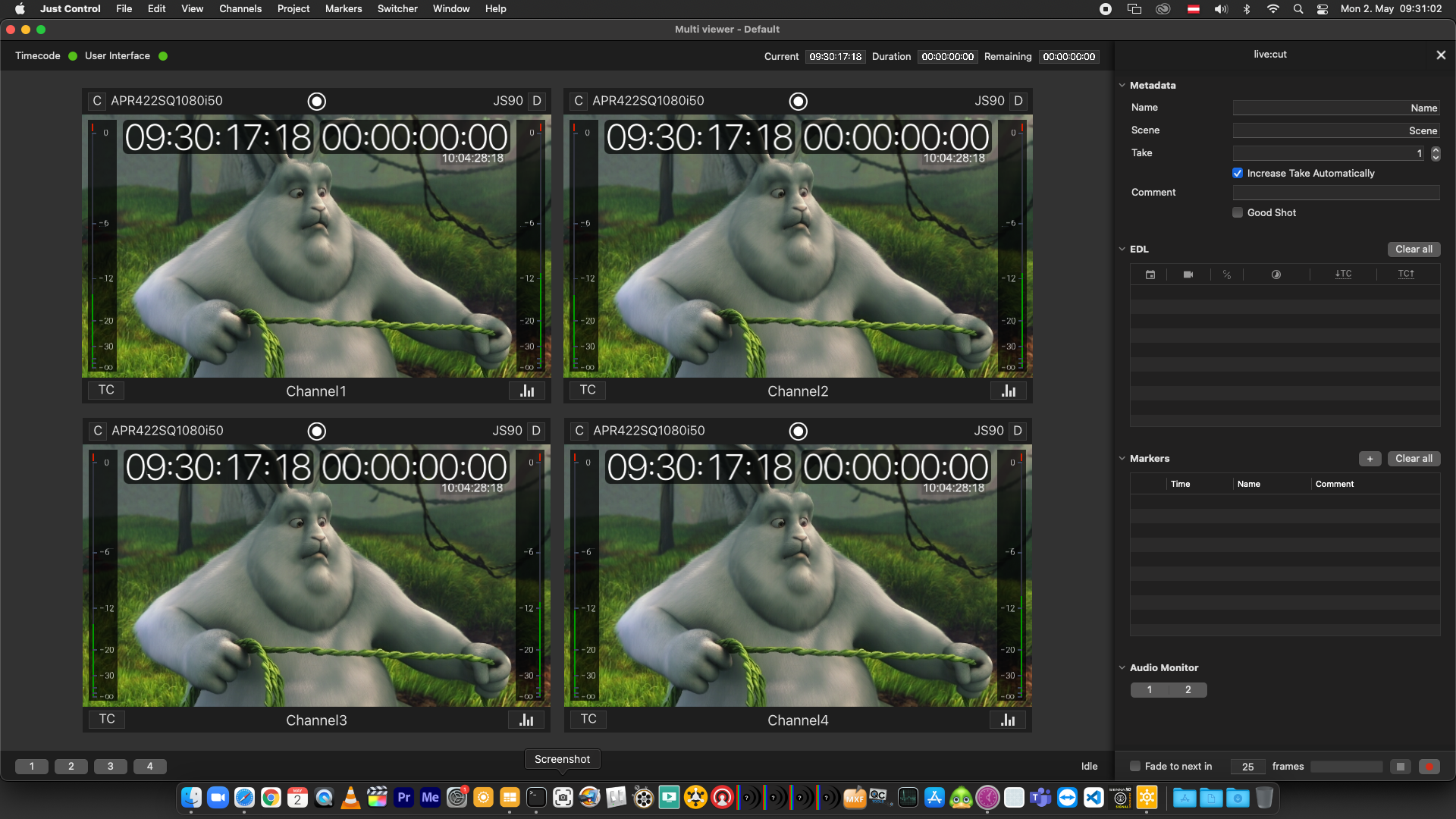

[JIL] Work with Live Cut Projects v.5.5 screenshot 3

Close a Live Cut Project

Go to the menu “File → Close Project”. The Live Cut Project will be closed and the Just Control interface will be displayed again.

Open an existing Live Cut Project

Open the folder “~/Documents/LiveCut Documents/Projects” and double click the Project file (*.lcproj) you want to open.

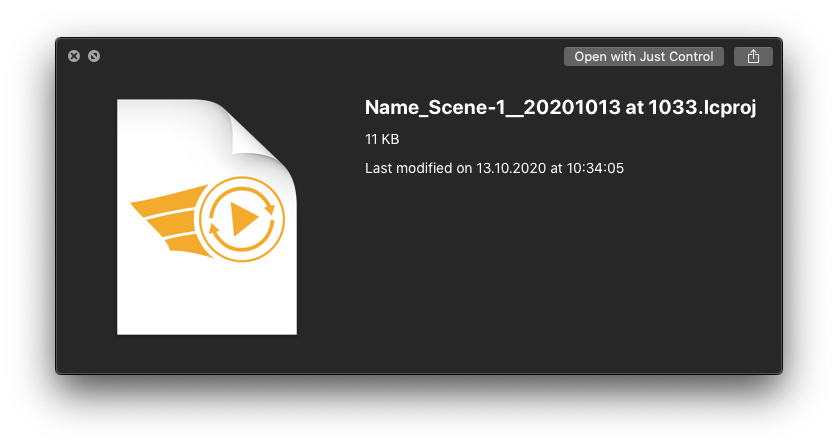

[JIL] Work with Live Cut Projects v.5.5 screenshot 4

Live Cut opens the Project and displays an already filled out EDL. You may export the Project again by using the menu “Project → Export to …”

Live Cut Project Templates

Create a Live Cut Project Template

Make sure your are in a Live Cut Project. To open a previously saved Live Cut Project refer to the instructions above. Go to the menu “Project → Create Template”.

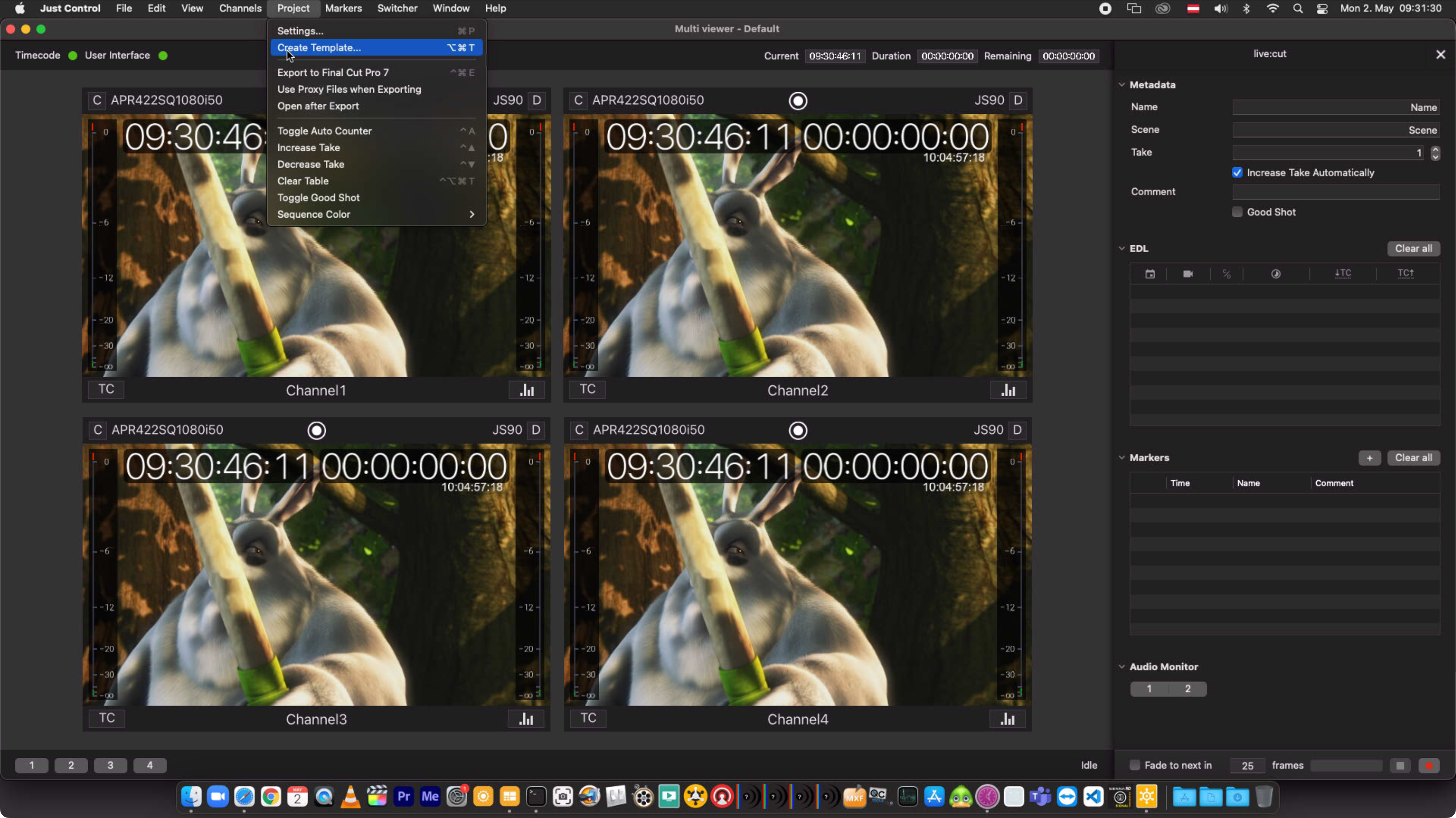

[JIL] Work with Live Cut Projects v.5.5 screenshot 5

Enter a Template name and press the “Save” button. Such Project Templates can be used with every Live Cut Project start.

[JIL] Work with Live Cut Projects v.5.5 screenshot 6

Use a Live Cut Project Template

Open Just Control, select the Channels, you want to use for your Live Cut Project and and start a new Live Cut Project (Go to the menu “File → New Live Cut Project”).

[JIL] Work with Live Cut Projects v.5.5 screenshot 7

Select your Project Template from the drop-down menu and use the “Create” button to start the Live Cut Project.

Remove a Live Cut Project Template

Make sure that Just Control is currently not running. In the Finder Window go to your User folder. Open the folder “~/Documents/LiveCut Documents/Project Templates” and Delete the desired Project Template.

Start a Multicam Recording

Before starting a Multicam Recording you have to ensure that your Live Cut Project Settings are configured properly. Refer to the chapter Project Settings.

If you have already configured the Project Settings you can head straight to the chapter Start a Multicam Recording.
