9.3 The Just In Channels Window

Before starting the recording process you will need to select your ingest channels. This is done by opening the "Just In Channels" from the Window menu ("Cmd + 2"). You should see the channels previews now. Let's have a look at the Just In

Before starting the recording process you will need to select your ingest channels. This is done by opening the "Just In Channels" from the Window menu ("Cmd + 2"). You should see the channels previews now. Let's have a look at the Just In Channels interface window now.

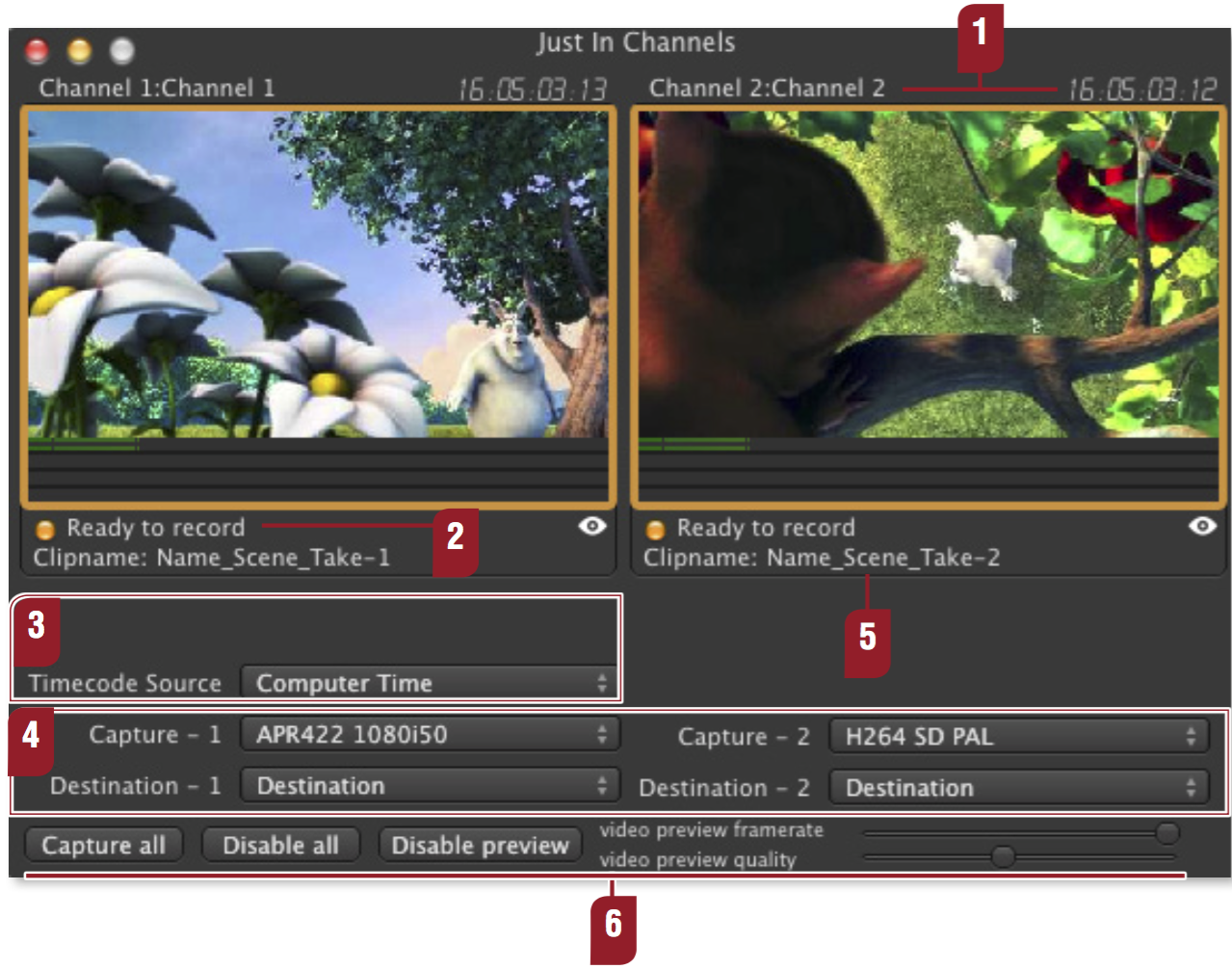

9.3 The Just In Channels Window screenshot 1

1

Channel Number and Running Timecode

2

Record / Ready to record Info LED: Shows whether the channel is currently recording (red) or ready for record (yellow).

3

Timecode Source: Choose between Computer Time and Audio In.

4

Capture and Destination preset selectors for Capture – 1 and Capture – 2: Live Cut can record on 2 different capture instances at once. You can select the appropriate presets here.

5

Filename: Name of the file.

6

Capture all, Disable all and Disable preview: Selects / Deselects all channels. Disables the preview. Alternatively you can change both the video preview framerate and the video preview quality to save network bandwidth and CPU.

9.3 The Just In Channels Window screenshot 2

9.3 The Just In Channels Window screenshot 3

1

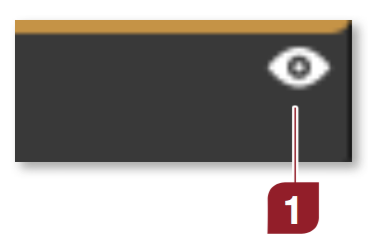

Eye Icon: Takes you directly to the defined High-Res file path.

2

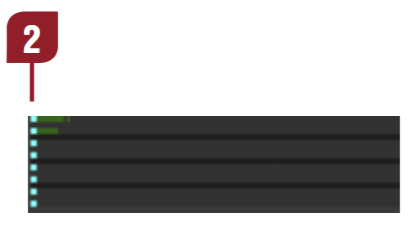

Audio Preview: Clicking in the audio bar of the desired channel will activate the audio preview. Remember to enter a dedicated Audio Preview Port in the Just In Con guration preference panel.
