General
The TCP Device enables specific control actions towards the Blackmagic Design Videohub.
Devices
Select the Device from the “Device & protocol” list, enter the IP address of the Blackmagic Design Videohub and press the “Add…” button to create the Device.
A new window appears, where further configuration is required:

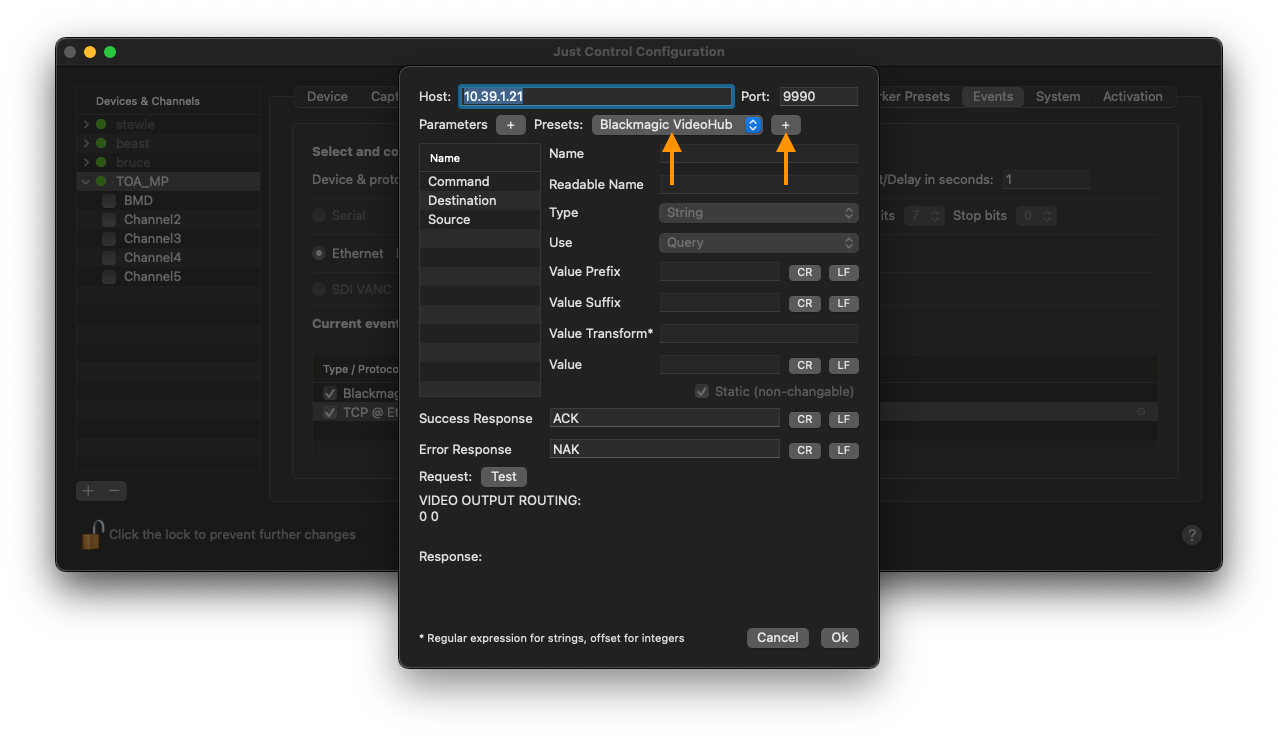

First, choose Blackmagic Design Videohub as Preset and press the Plus (“+”) button next to it.
If the Blackmagic Design Videohub can be reached over an IP network, everything should be good, but to make sure, use the “Test” button to check the connection first.
Once the response is positive, the step can be completed by pressing the “Ok” button.
Further configuration will be done within the Recording Event itself. Please see below:
Presets

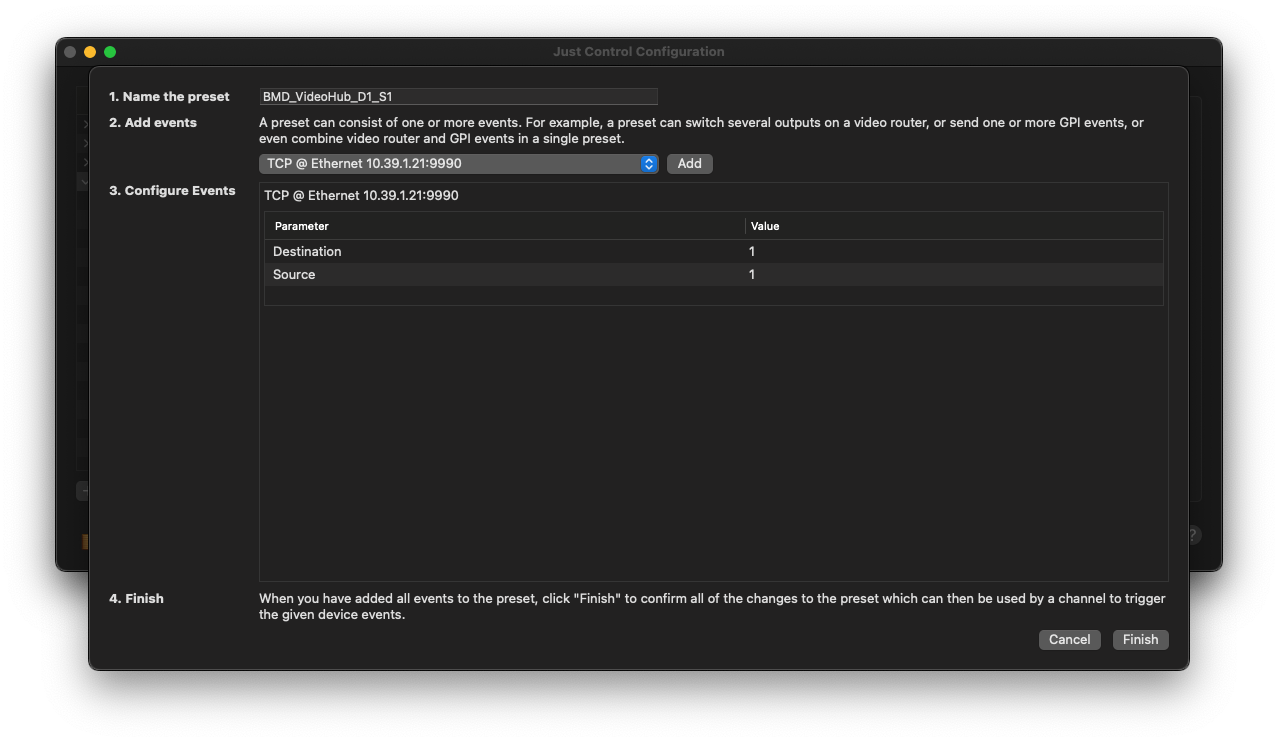

Set a name for the Preset, select the Blackmagic Design Videohub Device, and press “Add”.
After that step, you can configure the “Destination” and “Source” values. In this example, “Source 1” will be routed to “Destination 1”, once this Event will be triggered. Once done, press the “Finish” button, and the Event will be visible within the Presets list and be available within the Inspector of Just Control as well.
