3.1.4 Capture Presets (Just In Engine Linux v1.0)

Capture Presets define how a Recording will be done (codec, container, resolution…). Before you can do Recordings with the Just In user interface you need to create one or multiple Capture Presets. After defining Presets you can quickly access them in the Just In User Interface. This speeds up the Recording process and helps keeping things organized.

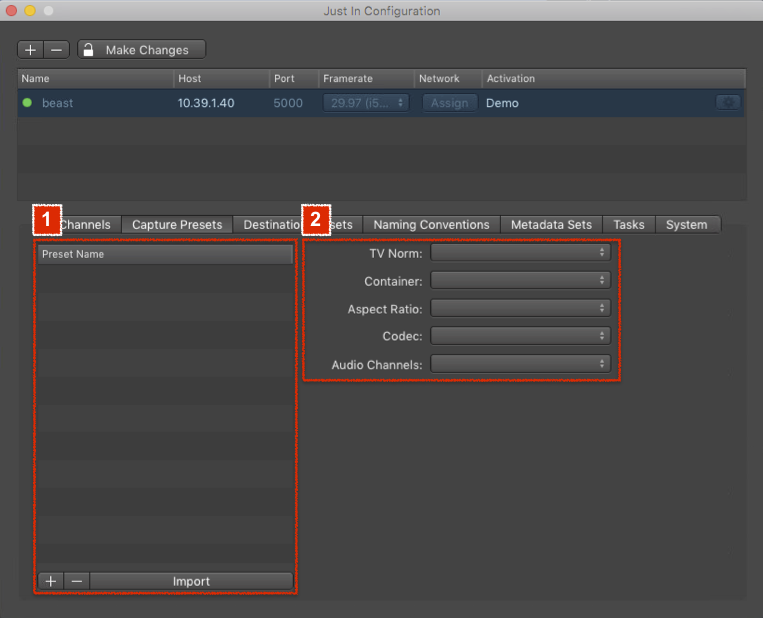

Overview

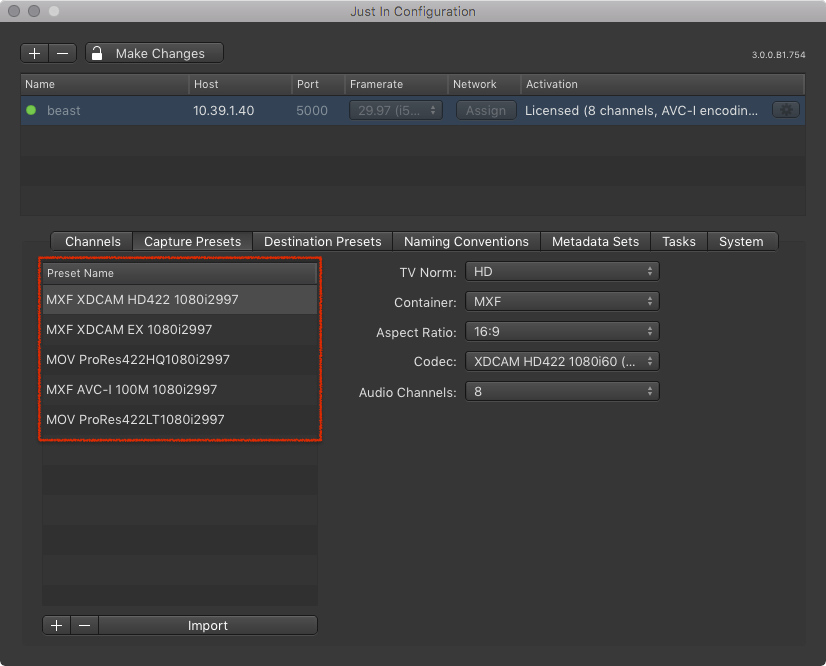

1. Capture Preset List: shows all available Capture Presets. Use the buttons below to add, remove and import Presets.

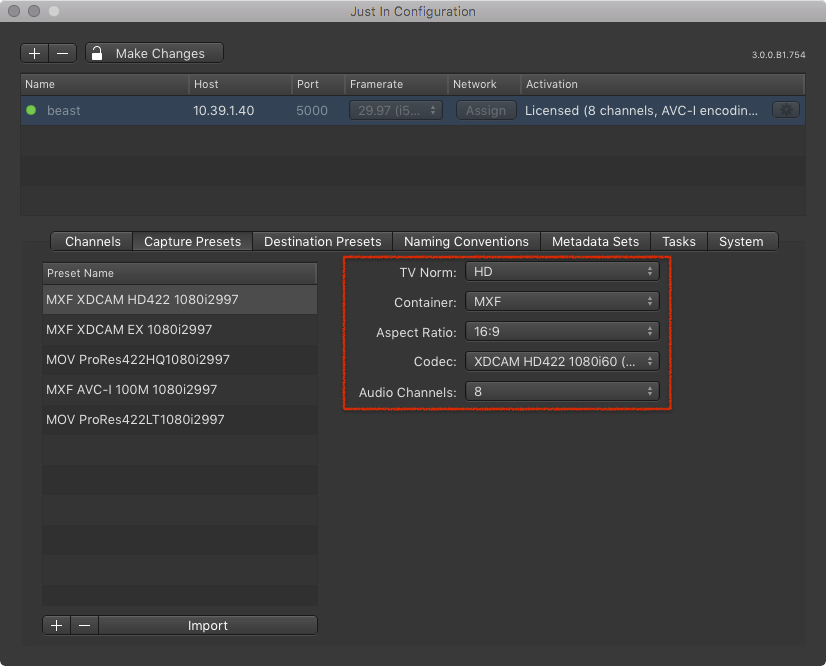

2. Capture Preset Configuration: allows you to define your Capture Preset.
   • TV Norm: select the desired TV Norm.
   • Container: select the desired Container.
   • Aspect Ratio: select the desired aspect ratio.
   • Codec: select the desired Codec. After selecting the Codec you may also be asked for the Framerate and Resolution.
   • Audio Channels: select the number of Audio Channels. After selecting the number of Audio Channels you may also be asked for the Audio Track Alignment (Mono or Stereo).

Adding a Capture Preset

1. In the Engine List select the Engine.



2. Click on the Capture Presets tab.

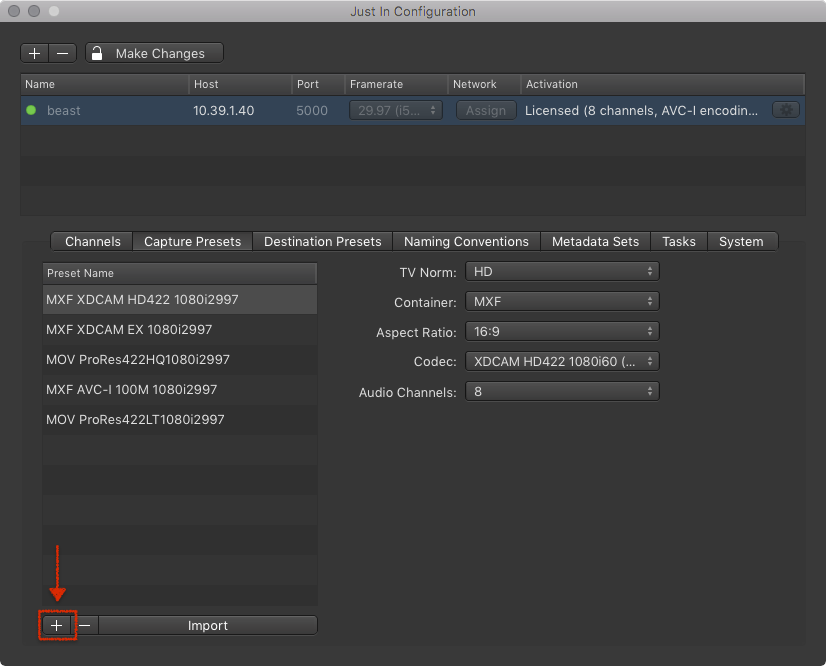

3. Below the Capture Preset List press the plus button to add a Capture Preset.



4. A dialog appears asking you for the Capture Preset Name. Enter the Capture Preset Name and press the Create button.



5. Configure the Capture Preset. It will be saved automatically after all attributes are defined. You may change the settings of a Capture Preset at any time.


Duplicating a Capture Preset

1. In the Engine List select the Engine.



2. Click on the Capture Presets tab.



3. Below the Engine List press the plus button to duplicate an existing Capture Preset.



4. A dialog appears asking you for the Capture Preset Name.

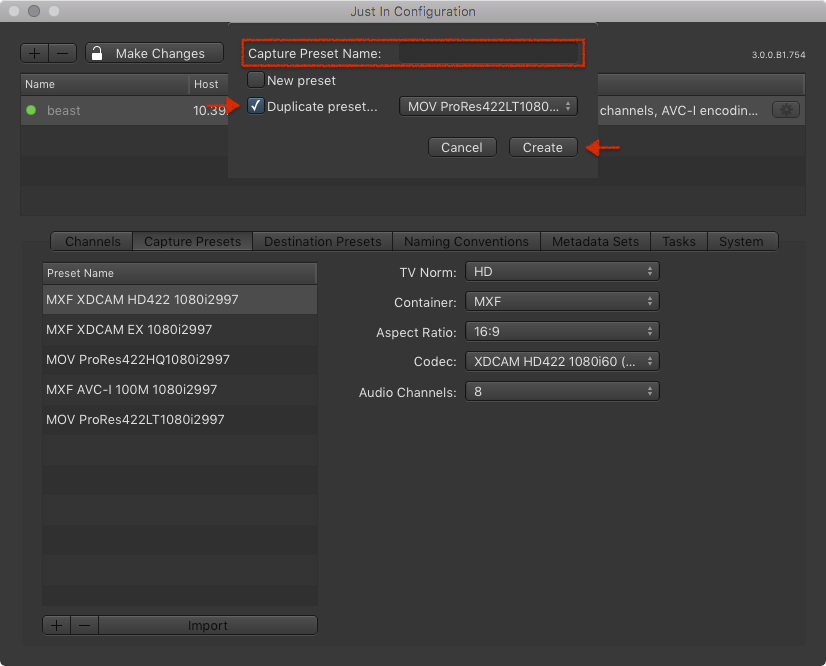

5. Enter the Capture Preset Name, activate the Duplicate Preset checkbox, select the Capture Preset you want to duplicate in the drop down menu and then press the Create button.



6. Configure the Capture Preset. It will be saved automatically after all attributes are defined. You may change the settings of a Capture Preset at any time.


Editing an existing Capture Preset

1. In the Engine List select the Engine.



2. Click on the Capture Presets tab.



3. In the Capture Preset List select the Capture Preset you want to edit.



4. Edit the Capture Preset. Changes are saved automatically.


Removing a Capture Preset

1. In the Engine List select the Engine.



2. Click on the Capture Presets tab.



3. In the Capture Preset List select the Capture Preset you want to remove.



4. Below the Capture Preset List press the minus button to remove the selected Capture Preset.


Importing a Capture Preset

You can import Capture Presets which have been created in Just In Engine Mac.

1. In the Engine List select the Engine.



2. Click on the Capture Presets tab.

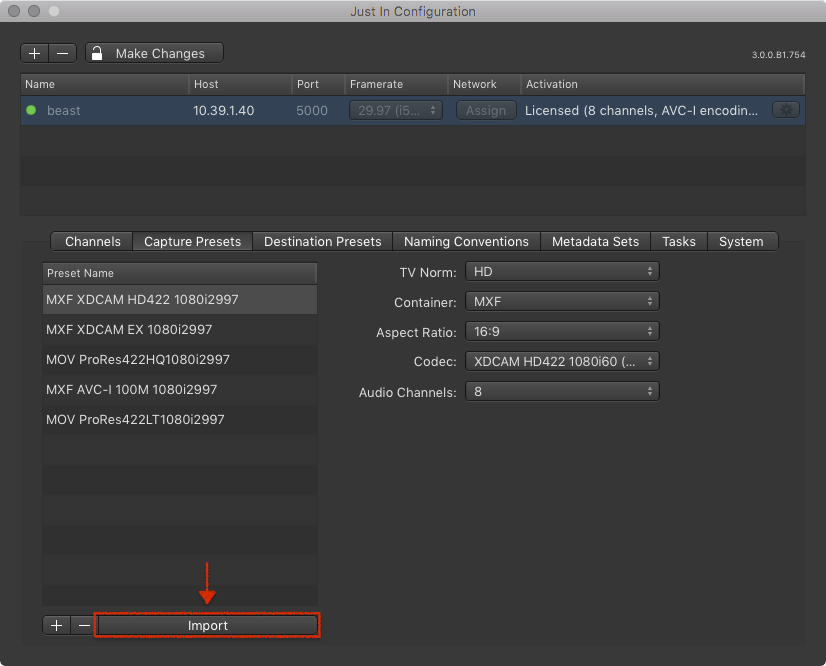

3. Below the Capture Presets List press the Import button.



4. Select the Capture Preset you want to import.

Apple ProRes

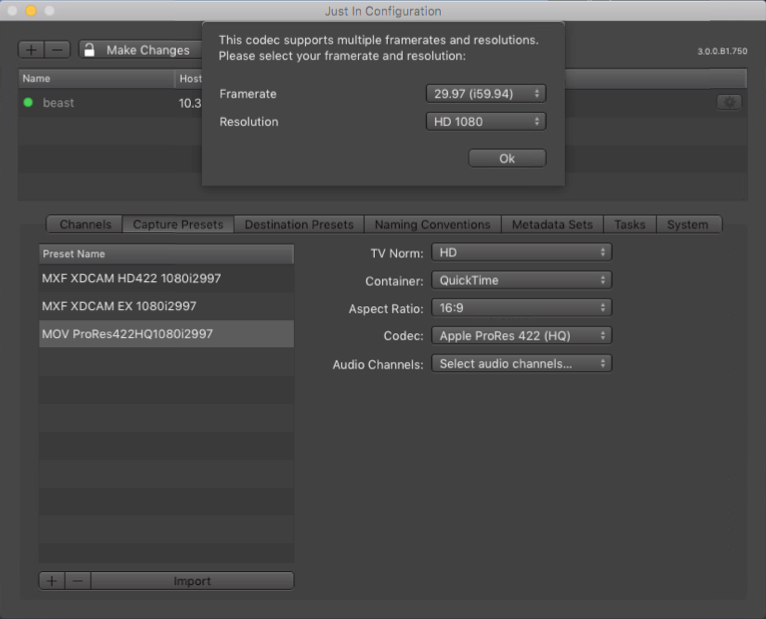

When creating an Apple ProRes-based Capture Preset you need to select the Framerate and Resolution.

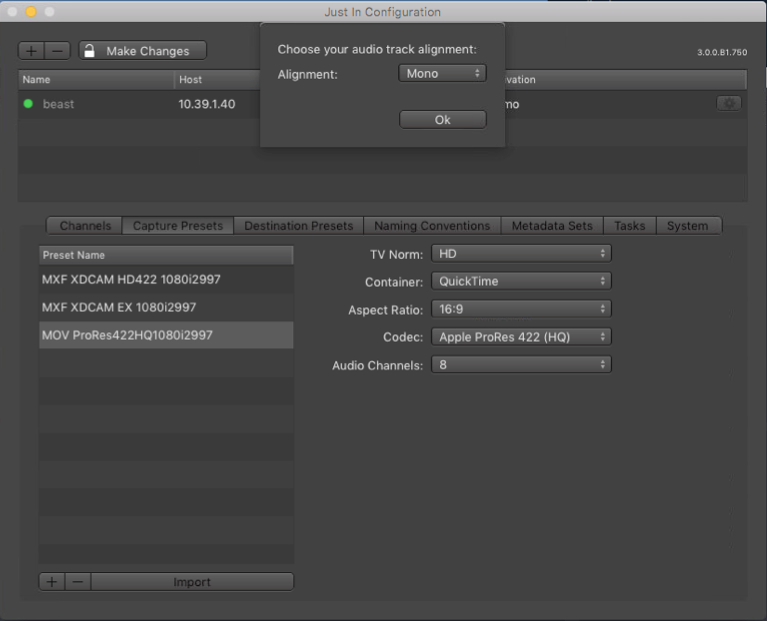

Audio Channels and Audio Alignment

You can choose between 2, 4, 8 and 16 Audio Channels for every Capture Preset. Some configurations may also require an Audio Alignment setting.
