Batch Mode (Just In v3.5)

In Batch Mode a channel records a Batch List of predefined In- and Outpoints from a VTR Device. Batch Mode requires a valid VTR Device connection.

Preface

In Batch Mode a channel records a Batch List of predefined In- and Outpoints from a VTR Device. Batch Mode requires a valid VTR Device connection.

Starting a Recording

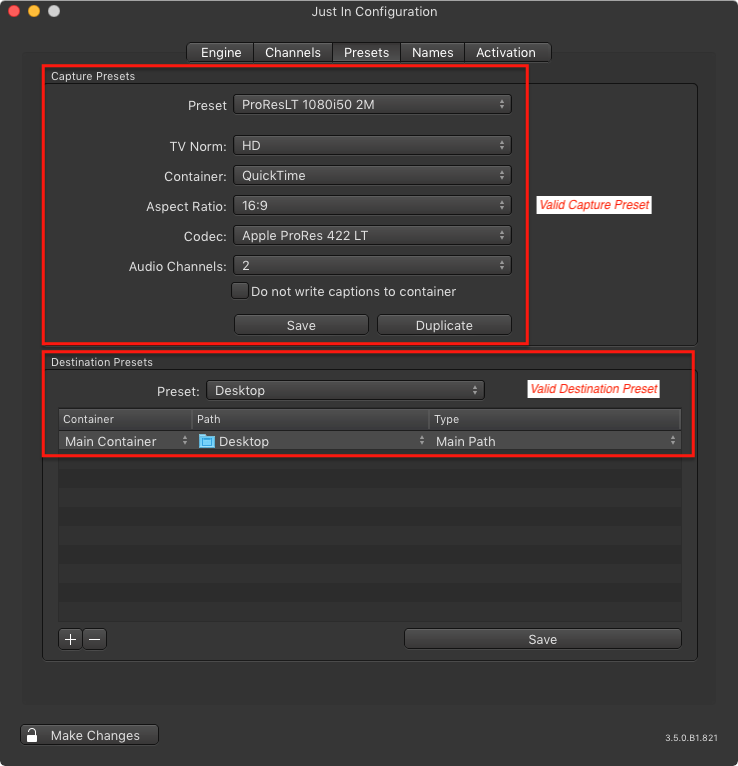

  1. Make sure to have at least one valid Capture Preset and one valid Destination Preset in Just In Engine.
    Batch Mode (Just In v3.5) screenshot 1

  2. Make sure you are connected to a Channel in Just In.
    Batch Mode (Just In v3.5) screenshot 2

  3. Select Batch Mode in the desired Channel View. VTR Controls can be found in the Inspector.
    Batch Mode (Just In v3.5) screenshot 3

  4. Select a Naming Preset and define a clip name.
    Batch Mode (Just In v3.5) screenshot 4

  5. Select a Capture Preset and a Destination Preset.
    Batch Mode (Just In v3.5) screenshot 5

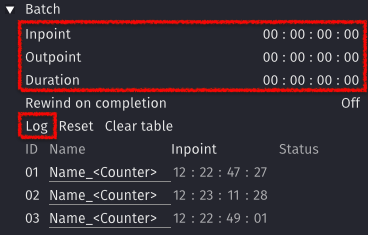

  6. Define your Batch List by entering an Inpoint, Outpoint and/or Duration. Press the Log button for each entry. To add further entries press the Reset button and repeat this step.
    Batch Mode (Just In v3.5) screenshot 6

  7. Adjust the other settings accordingly to your needs.
  8. Hover over the Channel View and press the Record button (shortcut: command +R).
  9. You can see the status of the current ongoing Batch Log in the Inspector.
    Batch Mode (Just In v3.5) screenshot 7Batch Mode (Just In v3.5) screenshot 8

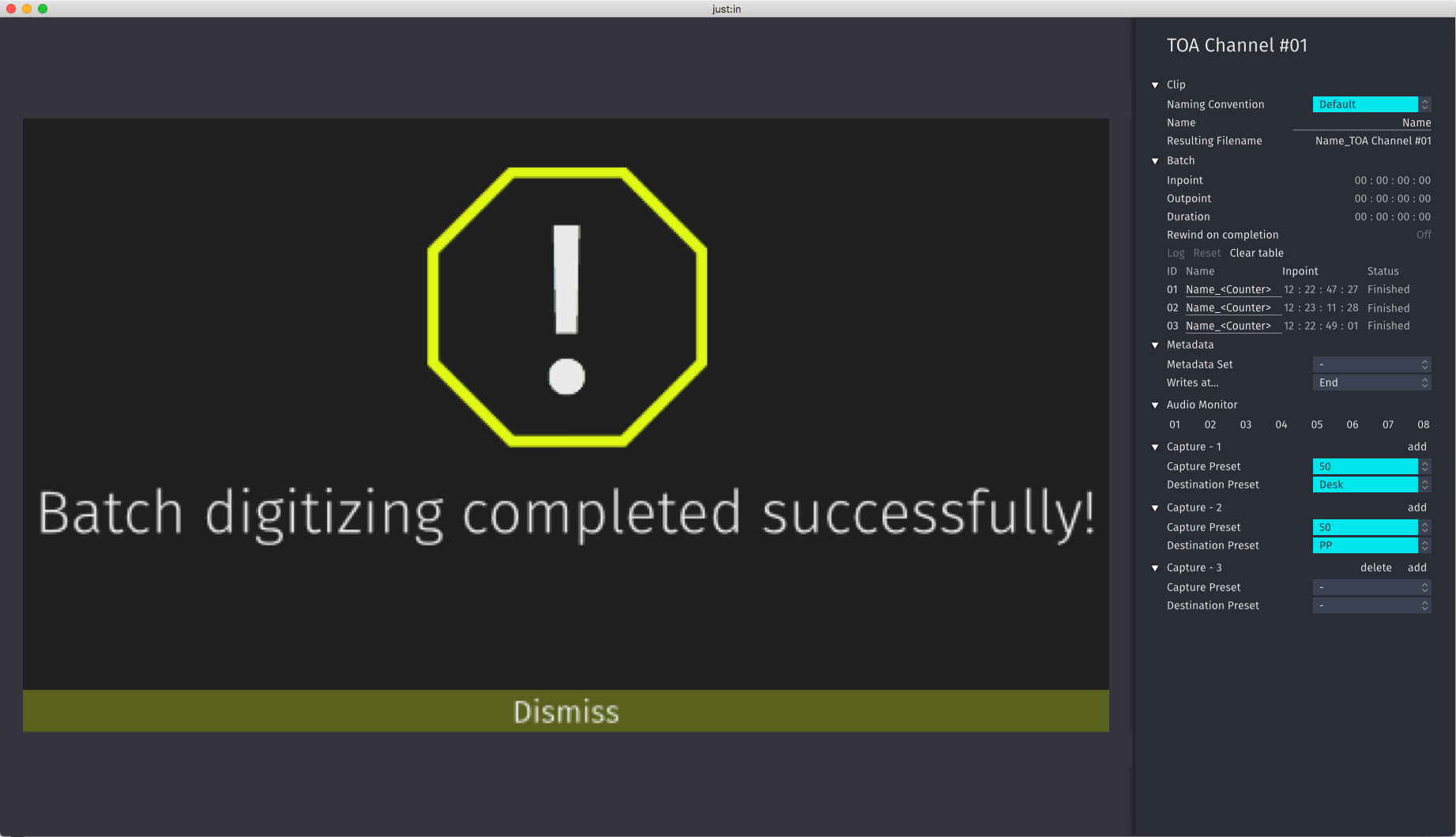

  10. Just In informs you when the Batch List has been recorded successfully.
    Batch Mode (Just In v3.5) screenshot 9

  11. In case the Batch Recording has been canceled or has been aborted you will get a warning.
    Batch Mode (Just In v3.5) screenshot 10Batch Mode (Just In v3.5) screenshot 11

  12. To be able to add new entries to a new Batch List you need to clear the existing list by pressing the Clear table button.
