5.1 Setup Types (v2.0)

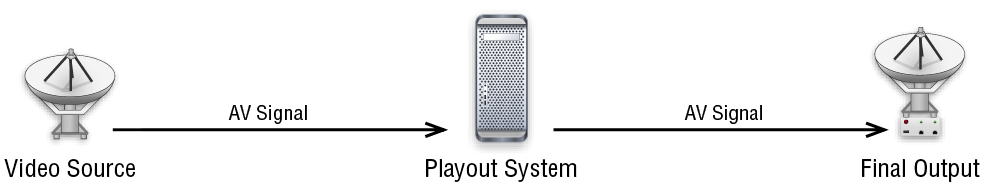

Type A: Single Source Using Pass-Through Channe

Activate the DS Keyer of the AJA card (like described later in this chapter) to switch between a single live source and the movie playout without any additional hardware using the free built-in switch to live function using the pass-through mode.

Type B: Multi Source Using Pass-Through Channel

Activate the DS Keyer of the AJA card (like described later in this chapter) and use additional router control/GPI events if you have more than one live source and you want to use the pass-through mode.

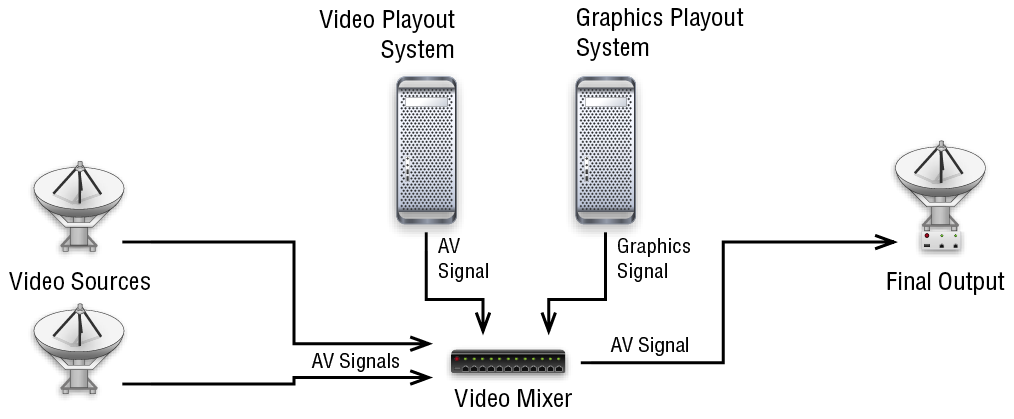

Type C: Traditional Setup

Activate router control/GPI events if you want to control a router to switch between the movie playout and any number of live signals without using the pass-through mode. Although the playout of videos and graphic elements is done using two separate machines, the control of the playout can be done using a single user interface.
